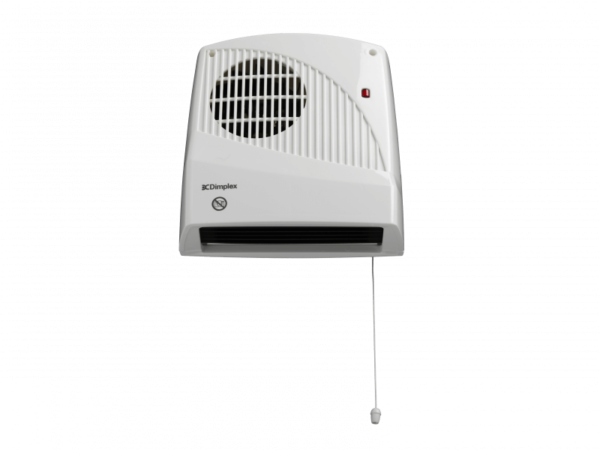

The FX20VE is a classically styled downflow heater with Pullcord and Timer.
With their compact design, FX downflow fan heaters are the popular choice for discreet wall mounted heating in a variety of different locations within the home including utility rooms. The powerful 2kW output ensures a fast warm up, although 1kW output is selectable on installation for smaller rooms. All models have visual on/off indicator, full safety protection and are simple to install. These products are not suitable for commercial or industrial applications.
| Colour/Finish/Material | White |
| Controls | Pull cord operation |
| Heat Output (kW) | 2 |
| Heat Selection | Off / 1.0kW / 2.0kW |
| Heat source | Electricity |
| Installation | Two upper keyhole slots are provided together with a third fixing hole. |
| Insulation | Two upper keyhole slots are provided together with a third fixing hole to secure the heater to the wall. 2kW or 1kW heat ouput selectable upon installation. Identical footprint to current FX20 models, meaning that retro-fitting an IPX4 model us incredibly |
| IP Rating | IP22 |
| Location of Heat Output | Grille at the bottom. |
| Height (mm) | 260.00 |
| Depth (mm) | 120.00 |
| Width (mm) | 243.00 |
| Weight (kg) | 1.09 |
| Recommended Mounting Height (m) | 1.8 |
| Construction | Double insulated plastic case. Moulded in flame retardant self extinguishing grade nylon. |
| Cable Exit Point | Middle, Top |
| Cable Length (m) | Supplied by Installer |
| Electric supply | ~230-240V |
| Element type | 2kW stitched type with thermal fuse protection |
| Loading/Wattage (kW) | 1 |
| Neon Indicator | Yes |
| Safety Cut Out | Manually resettable thermal overload cut out and thermal fuselink |
